LUMINA-120

Filters

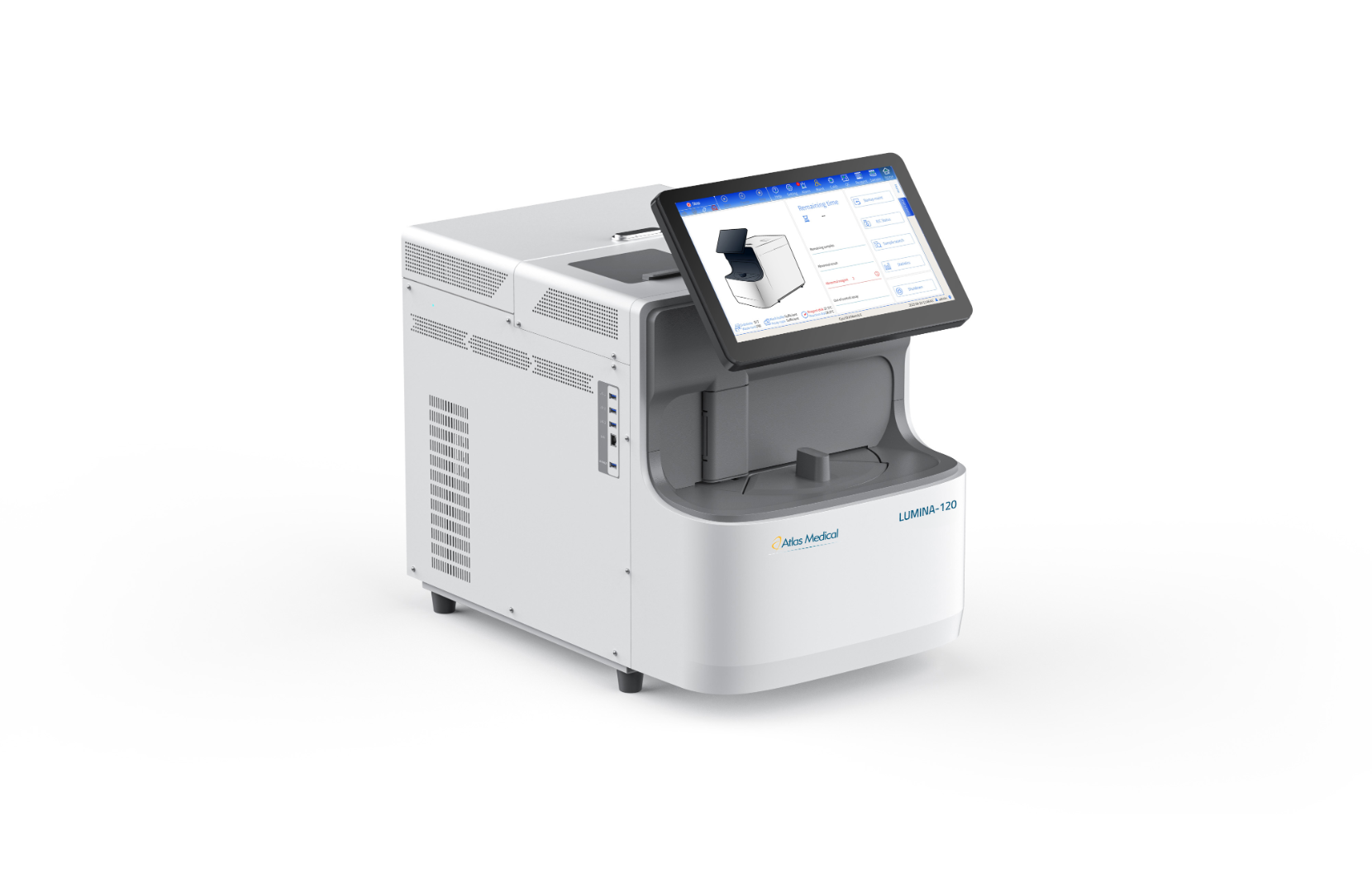

LUMINA-120 Chemiluminescence Immunoassay Analyzer

The Atlas Medical LUMINA-120 Chemiluminescence Immunoassay Analyzer combines a broad testing menu with a compact design to support clinical laboratory immunoassay testing. Delivering up to 120 tests per hour, it provides qualitative and quantitative analysis using acridinium ester-based direct chemiluminescence technology.

The LUMINA-120 supports a wide range of testing applications, including thyroid function, fertility and hormones, tumor markers, infectious diseases, TORCH, cardiac markers, inflammation, diabetes, anemia, kidney function and bone metabolism. Its test panels also extend to allergy, autoimmunity, thrombosis and therapeutic drug monitoring, helping laboratories address diverse testing requirements on one platform.

Designed for efficient daily operation, the analyzer features 30 sample positions, 10 reagent positions and a 52-position reaction disk. It accommodates serum, plasma, urine and whole blood, depending on the selected assay, with sample volumes ranging from 10–150 µL. Built-in barcode readers for samples and reagents support identification and an organized testing workflow.

The system uses ready-to-use liquid reagents and provides 24-hour uninterrupted reagent refrigeration at 2–8°C, maintaining controlled onboard storage conditions. Adjustable reagent volumes of 10–200 µL and a total reaction volume of ≤400 µL per test accommodate different assay requirements.

Built-in quality control features support routine monitoring of analytical performance, while Laboratory Information System (LIS) connectivity enables integration into laboratory data management workflows. Measuring 430 × 680 × 640 mm (W × D × H), the Atlas Medical LUMINA-120 offers a compact solution for laboratories seeking versatile chemiluminescence immunoassay testing.

Ordering Information

Cat No

Description

99

Chemiluminescence Immunoassay Analyzer (LUMINA-120)
