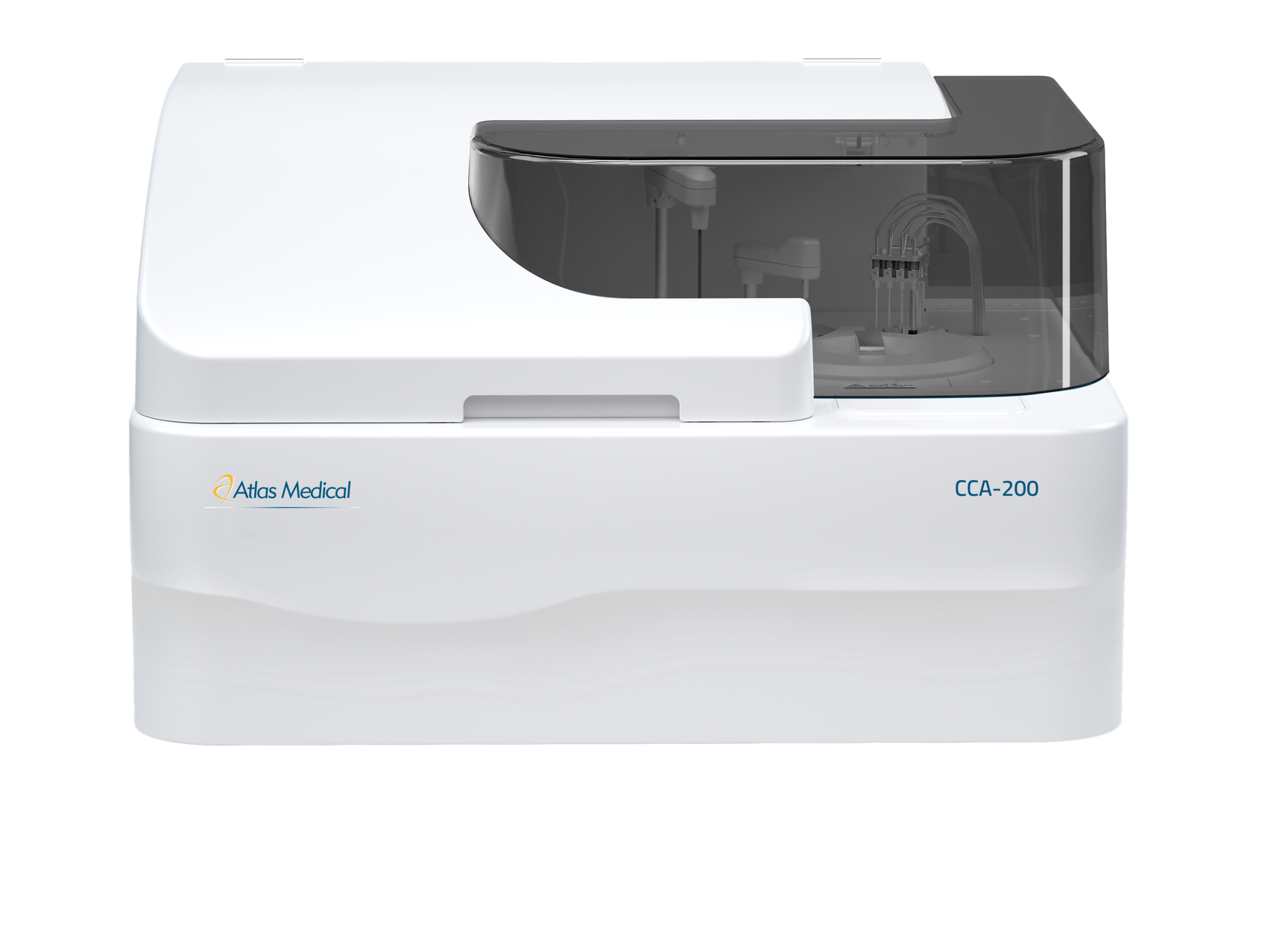

CCA-200 Clinical Chemistry Analyzer
The Atlas Medical CCA-200 Clinical Chemistry Analyzer combines automated testing with a compact design to support efficient daily laboratory operations. With a throughput of up to 200 tests per hour, it provides clinical chemistry and turbidimetric immunoassay testing on a single platform.
Using colorimetric and turbidimetric measurement methods, the CCA-200 supports a broad test menu covering liver function, kidney function, lipid profiles, glucose metabolism, cardiac markers and specific proteins. Available assays include ALT, AST, creatinine, urea, glucose, cholesterol, HbA1c, CRP, ferritin and D-dimer, helping laboratories meet diverse testing requirements.
The analyzer features a 40-position sample tray and an 80-position reagent tray, with automated sample handling and barcode recognition to support an organized workflow. It accommodates serum, plasma and urine samples, accepts micro cups and test tubes, and offers adjustable sample volumes from 2–30 µL in 0.1 µL increments.
A Peltier incubation system maintains the reaction temperature at 37°C ±0.1°C, providing controlled conditions for analysis. The optical system offers eight standard wavelengths from 340 to 700 nm, with four additional wavelength options. Linear and nonlinear calibration capabilities, together with built-in quality control features, support assay calibration and routine performance monitoring.
With Laboratory Information System (LIS) connectivity, the CCA-200 supports integration into laboratory data workflows. Six report formats and customizable printing options provide flexibility in result presentation. Measuring 745 × 540 × 530 mm, with water consumption of ≤8 litres per hour, the Atlas Medical CCA-200 offers a space-conscious solution for laboratories seeking automated chemistry testing and a versatile assay menu.
